The Edge2 Station adds 10/100M ethernet, a 3.5mm headphone jack, UART for debugging, external audio DAC, and more, to your Edge2 ARM PC by docking with pogo pads located on the underside of the device.



Features:

  • 10/100M Ethernet Port
  • 3.5mm Headphone Jack
  • UART (CP2104, USB-C Port)
  • ALC4032-CG DAC



5V Power Input

  • Pogo Pins
  • USB-C



LED Indicator

  • Power: Green LED x1, Red LED x1
  • UART: White LED x1, Blue LED x1



Dimensions

  • PCBA: 85.00mm (l) x 60.75mm (w) x 11.5mm (h)
  • Product: 86.00mm (l) x 60.75mm (w) x 15.0mm (h)



Compatibility

  • Edge2



Documentation:



In The Box:

  • Edge2 Station x1

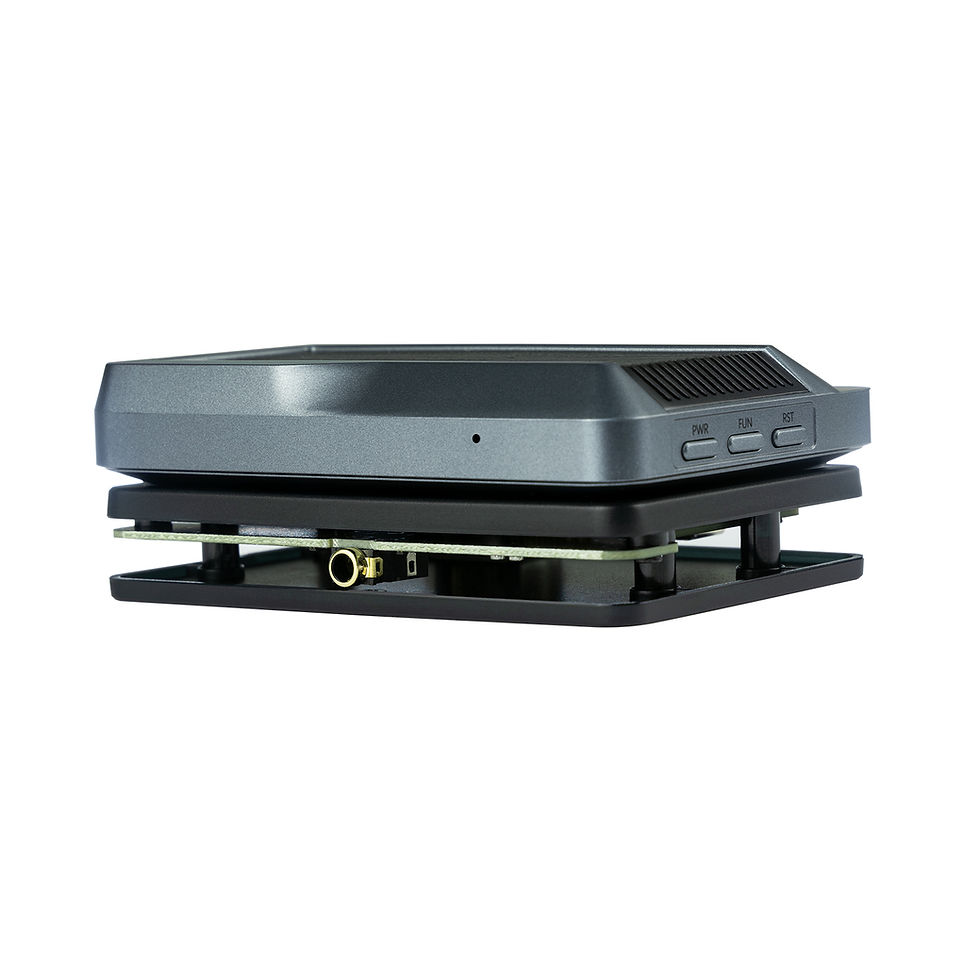

Edge2 Station

SKU: K-E2S-002
$35.00Price
